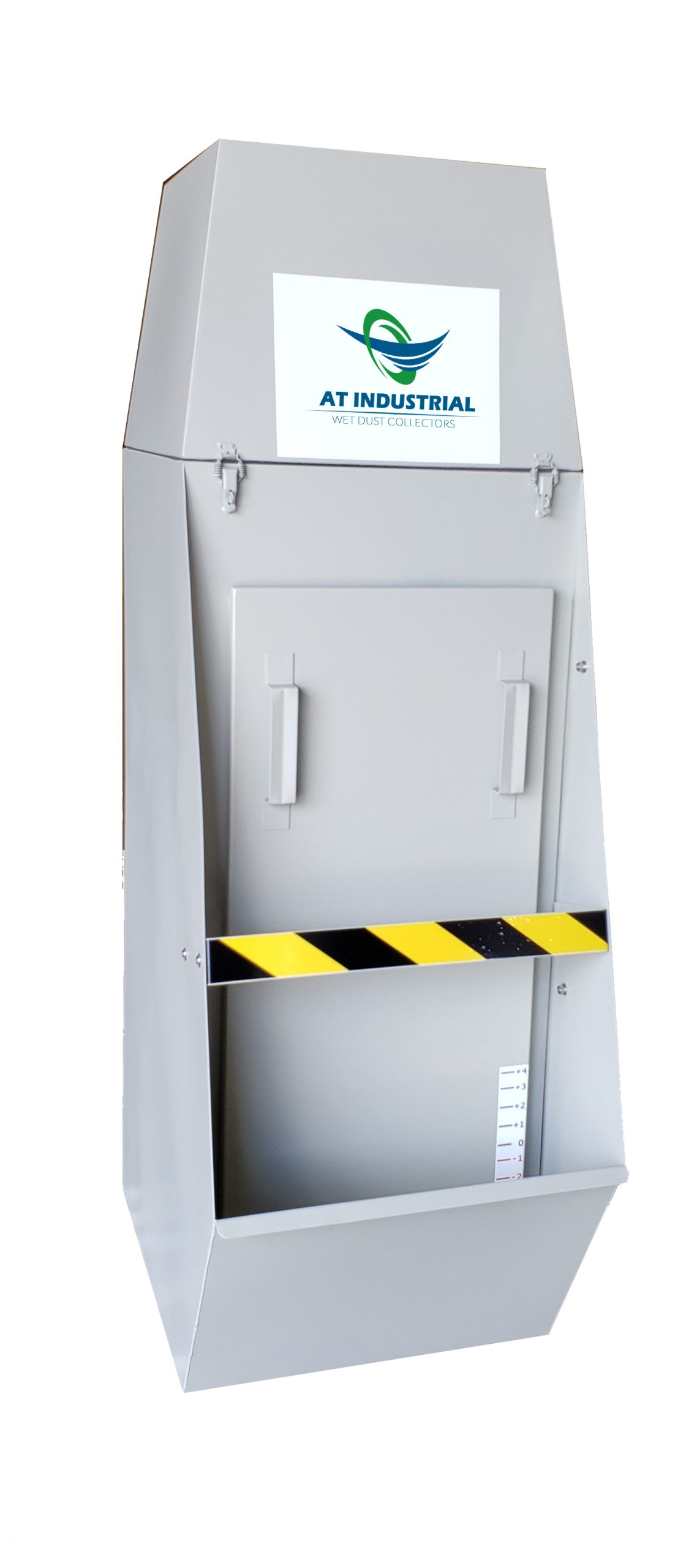

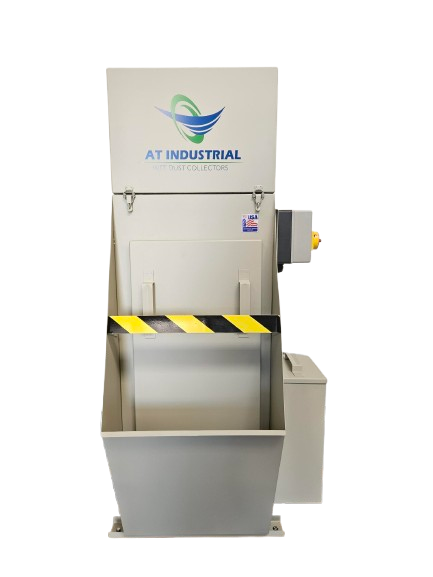

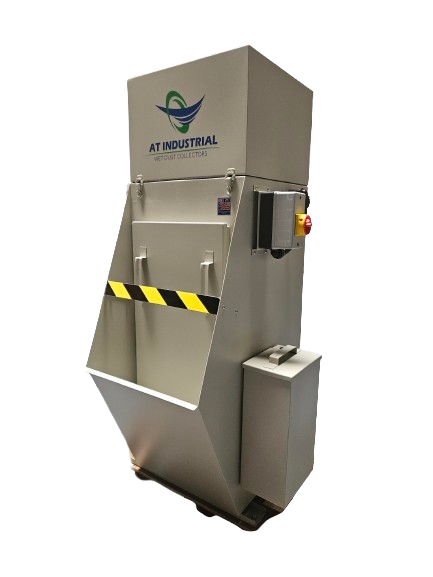

C3-800 Wet Dust Collector

Model C3-800 Specifications:

• Approximate dimensions: 19″W x 29″D x 60″H
• Est. Shipping Weight: 350lbs
• Sump Capacity: 40 gal.
• Motor: 3 HP
• CFM @ Inlet: 800

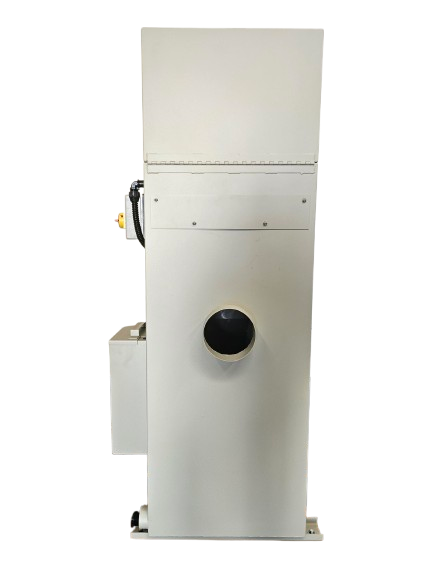

• Inlet Dia.: 6″

Applications:

Machining, Sawing, Grinding, Polishing, Buffing, Sanding, Abrasive Blasting

Standard Features:

• 304 Stainless Steel Construction
• TEFC Motor 230C-460C/60Hz/3ph (575V available)
• Standard precision balanced stainless steel impeller (direct coupled to the motor for maximum CFM with minimum vibration)
• Front access maintenance door

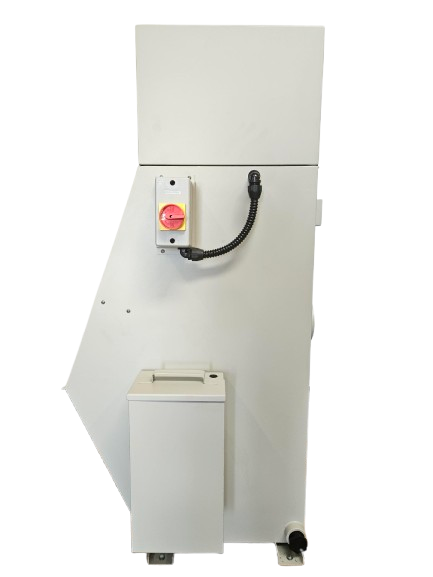

• Manual dial type starter
• Automatic water level control
• Sound suppression panels
• 1.5″ drain NPT Self-venting design (prevents hydrogen build-up)
• Powder coated exterior
• Stainless steel sludge rake for cleaning

Options:

• NFPA/OSHA Compliant electrical pacakge
  • Starts collector when process machinery is turned on
  • Monitors water level to ensure proper CFM production
  • Shuts down processing equipment and wet collector when water level is too low or too high.

• Extended sump, stainless steel cover and flange
  • Moves inlet from vertical to horizontal position
  • Eliminates 45° & 90° elbow off the back of the unity
  • Allows straight duct to attach to the flange located on top of the sump cover
