AT Industrial Wet Dust Collector Systems
C3-800

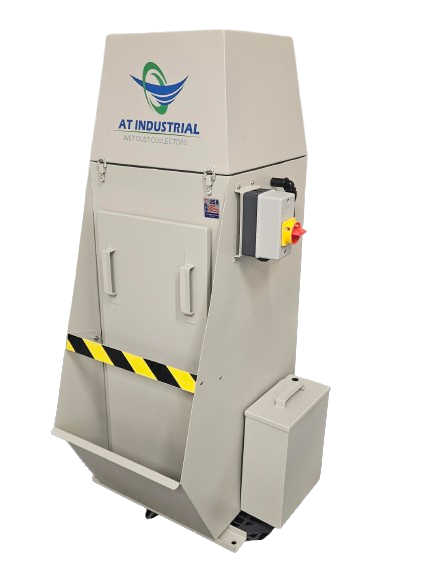

C3-1200

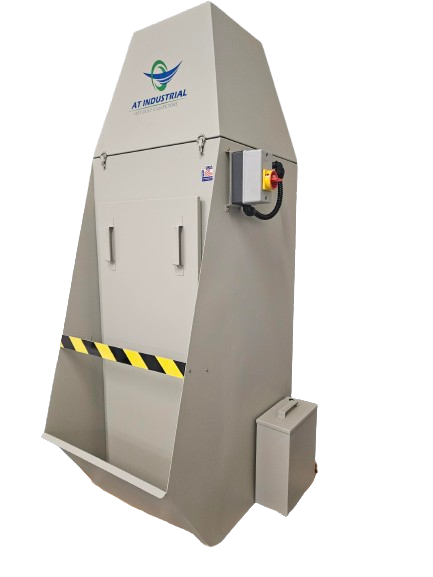

C5-2500

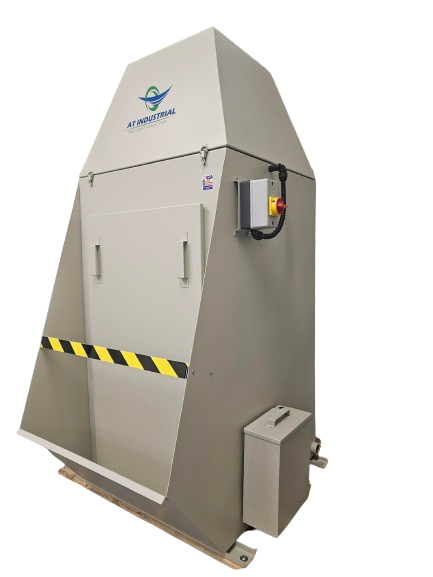

C7-3000

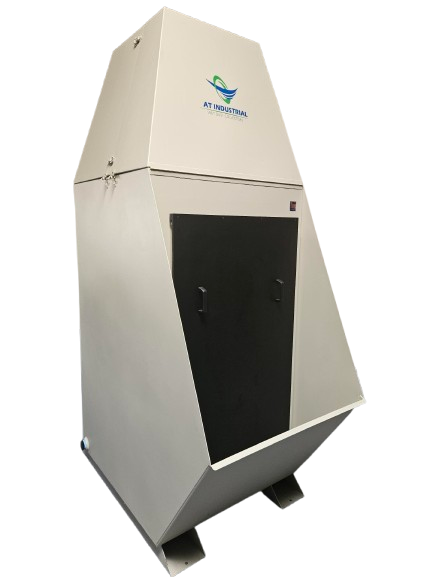

C15-5000

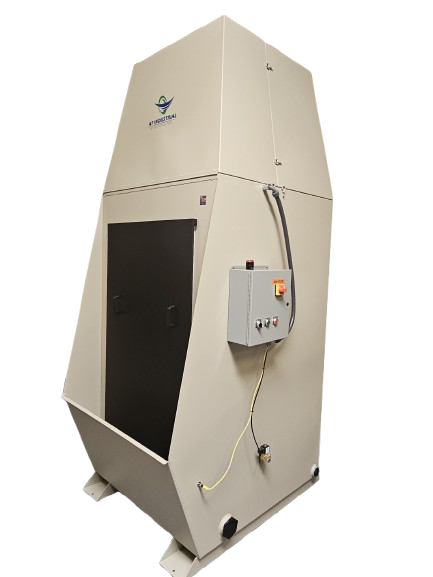

C20-8000
C40-15000

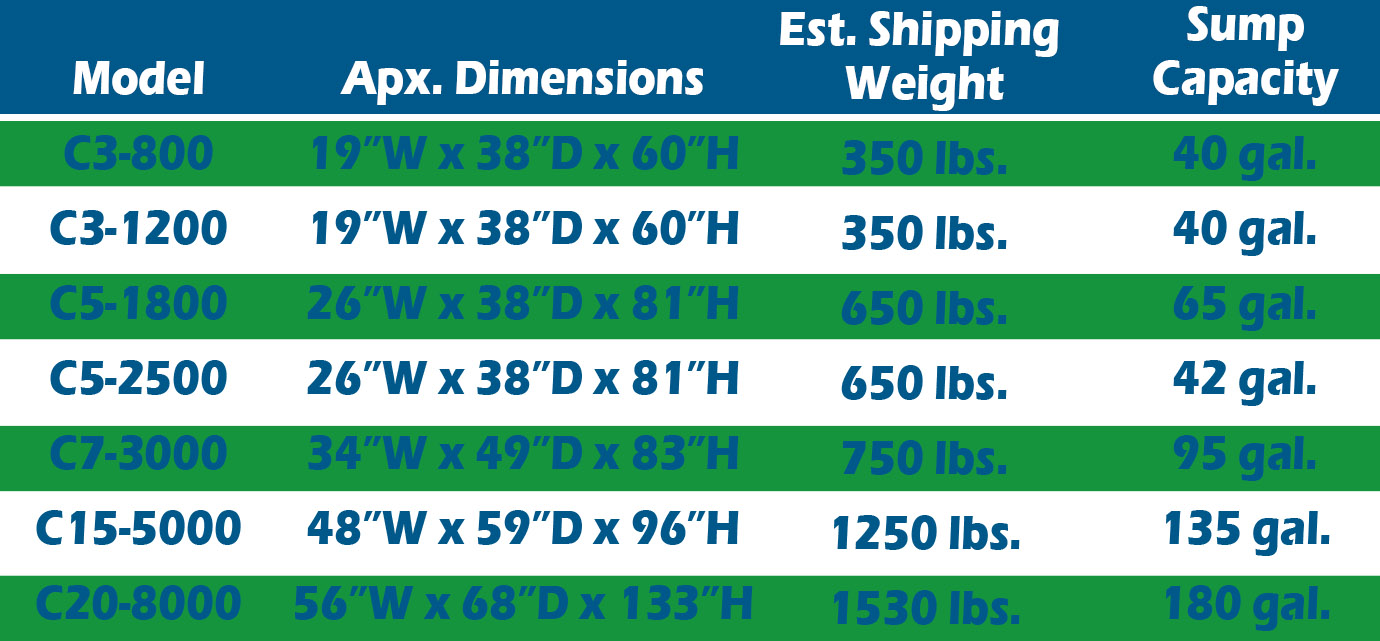

Wet Dust Collection System Specifications
- Cabinet – Our cabinets are comprised of 304 seam welded stainless steel that is USA-certified
- Maintenance door – These are easily removable for maintenance and cleaning
- Motor – Specifications include a T.E.F.C. 208-230/460 volt, 3-phase, 60 Hz (other voltages also available)
- Inlet – CFM tests are performed at the inlet without the duct attached
- Electrical control – Includes a dial-type starter with thermal overloads
- Impeller – This rotating component is standard, precision balanced, and directly coupled to the motor for maximum efficiency
- Filtration – A system of internal baffles separates and removes dust particles from the water
- Hood – The hood includes easily accessible, front-facing latches and foam sound suppression panels on all four inner walls for maximum noise reduction
- Automatic water level control – This allows for a secure connection to a water supply line for automatic water fill
- Cleaning tool – These components are made of stainless steel and provided for the easy removal of grinding dust and sludge from the bottom of the collector
Additional features of our wet dust collection equipment include:
- Custom table sizes
- An OSHA/NFPA-compliant electrical panel
- Pneumatic and electric power outlets
- A wheel grinding fixture
- Removable deflector walls
More About Our Wet Dust Collector Equipment Offerings
Our NFPA/OSHA-compliant electrical package:
- Starts collectors when the process machinery is turned on
- Monitors water level to ensure proper CFM production
- Shuts down processing equipment and the wet collector when the water level is too low or too high
Additionally, our extended sump, stainless steel cover, and flange:
- Moves the inlet from vertical to horizontal position
- Eliminates 45° and 90° elbows off the back of the unit
- Allows a straight duct to attach to the flange located on top of the sump cover
Finally, our sludge vac is designed to vacuum sludge and water out of the wet collector sump and through a filter. Simply flip a switch, and filtered water is returned to the sump.
Specific components of the sludge vac include the following:
- Lightweight polypropylene front access door
- Silencer
- Stand
- Legs
- Overflow pan
- Explosion-proof motor
- Custom color
- Private label
The OSHA/NFPA-compliant electrical package starts from a closed contact at the process machinery, interrupting the circuit if the water level is too high or too low. This electrical package also includes an ultrasonic water level sensor and valve, hazardous gas exhaust vent, PLC, time delay, warning light, alarm, and NEMA 12 enclosure.
Every machine is tested and run before leaving our shop to ensure correct CFM production and that water doesn’t migrate up and out of the machine. When the correct water level is maintained, our wet dust collectors don’t weep, seep, or leak.
Click here to see the performance curves for the AT Industrial wet dust collector.
** C20-8000 & C40-15000 and larger come standard with the upgraded OSHA/NFPA electrical package.
Factors to Consider When Choosing the Right Wet Dust Collection Equipment
There are a variety of factors to consider when finding the right wet dust collection system for your project, such as the:
- Dust being collected – This can include the dust type, density, size, toxicity, and moisture content.
- Size of the area being ventilated – When picking the right wet dust collector for combustible dust, make sure to determine the necessary airflow needed to effectively remove these particles from the source.
- Desired level of air quality and dust recovery – To comply with relevant industry standards, such as OSHA and other organizations, choose a wet dust collector that includes a higher air-to-cloth ratio, among other safety standards.
Contact AT Industrial Products Today
If you’ve been searching for a high-quality wet dust collector system to streamline your application needs, please reach out to us to get started. And if you have any questions about our product line, contact us directly, as we would be happy to assist you.
