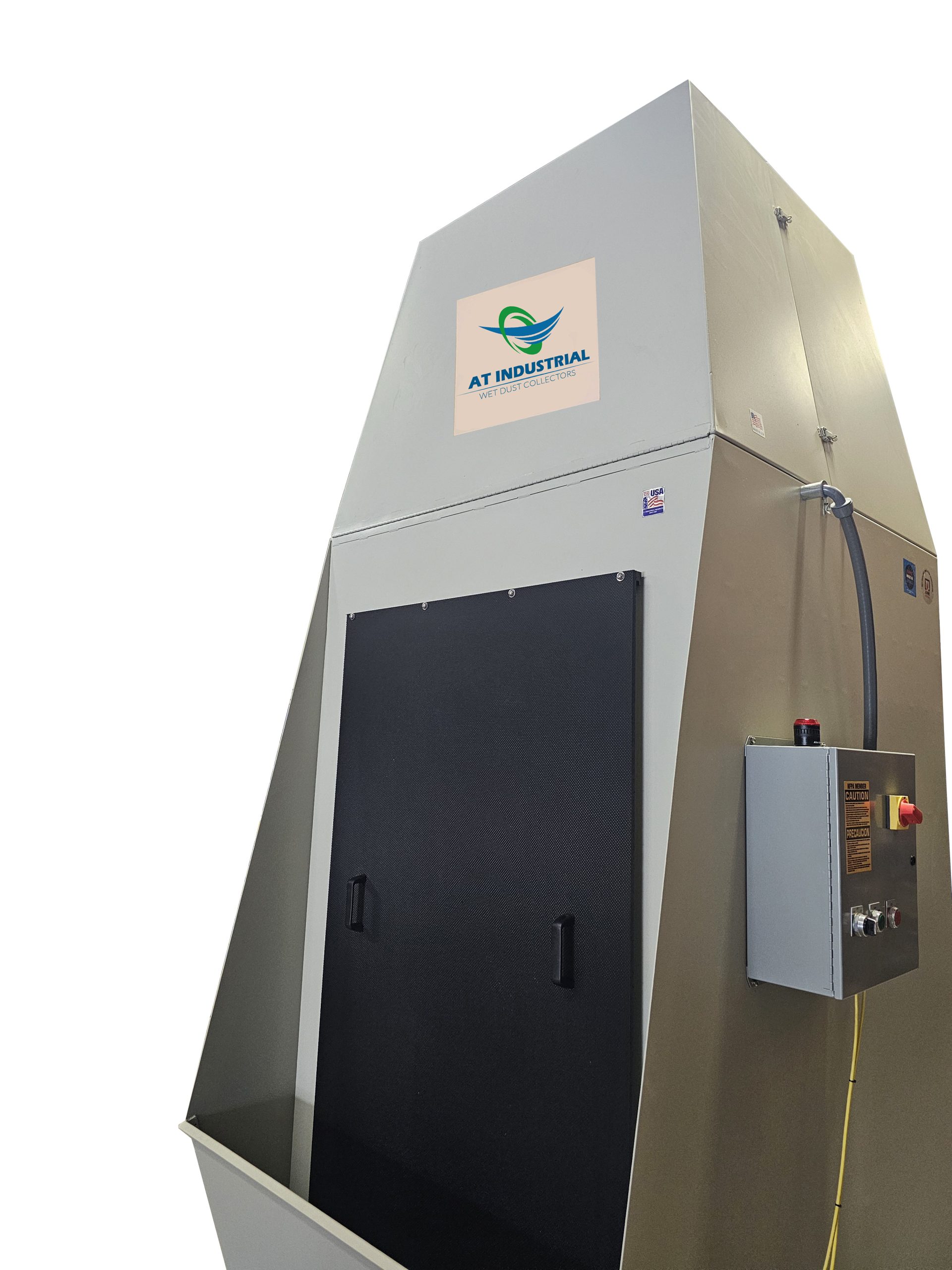

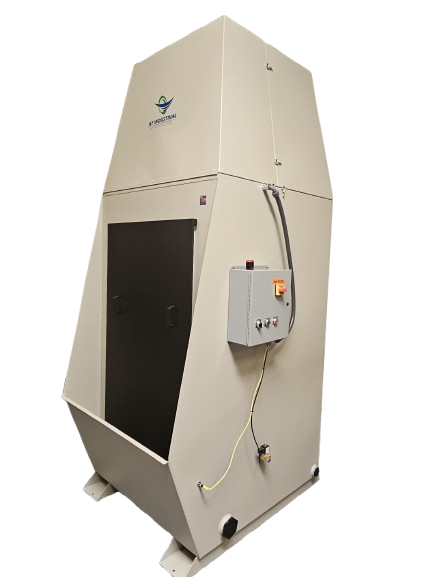

C20-8000 Wet Dust Collector
Model C20-8000 Specifications:
- Approximate dimensions: 56″W x 68″D x 133″H
- Est. Shipping Weight: 1530lbs
- Sump Capacity: 180 gal.
- Motor: 20 HP
- CFM @ Inlet: 8000
- Inlet Dia.: 26
Applications:
Machining, Sawing, Grinding, Deburring, Sanding
Standard Features:
| Component | Specification | Benefit |
|---|---|---|
| Housing | 304 Stainless Steel | Corrosion resistance, long service life |
| Motor | TEFC 230V–460V/60Hz/3ph | Enclosed protection in dusty/wet environments |
| Impeller | Precision-balanced SS, direct coupled | Maximum CFM with minimum vibration |
| Maintenance Door | Front access | Service without moving the unit |
| NEMA Electrical Package | Starts the collector when process machinery is turned on, monitors water level to ensure proper CFM production, and shuts down processing equipment and the wet collector when the water level is too low or too high | Interlocked operation and fault protection without relying on the operator |
| Starter | Manual dial type | Simple, on-unit operation |
| Water Level Controller | Automatic | Maintains proper level without operator input |
| Panels | Sound suppression | Reduced operating noise |
| Exterior | Powder coated | Durable, cleanable finish |
| Sludge Rake | Stainless steel | Simplified sediment removal |
Request a Quote
Request a quote using the form below or give us a call at 909-593-8340. In-stock units are available!
