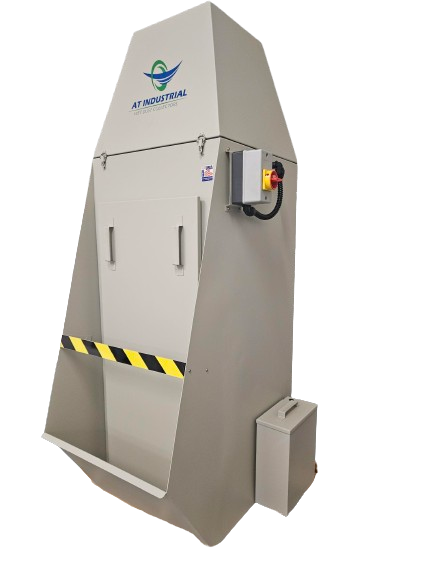

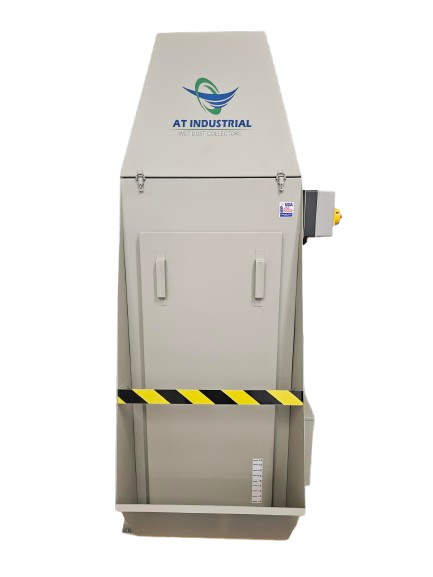

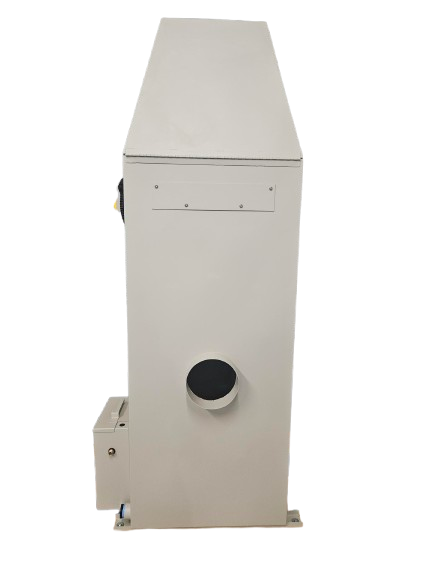

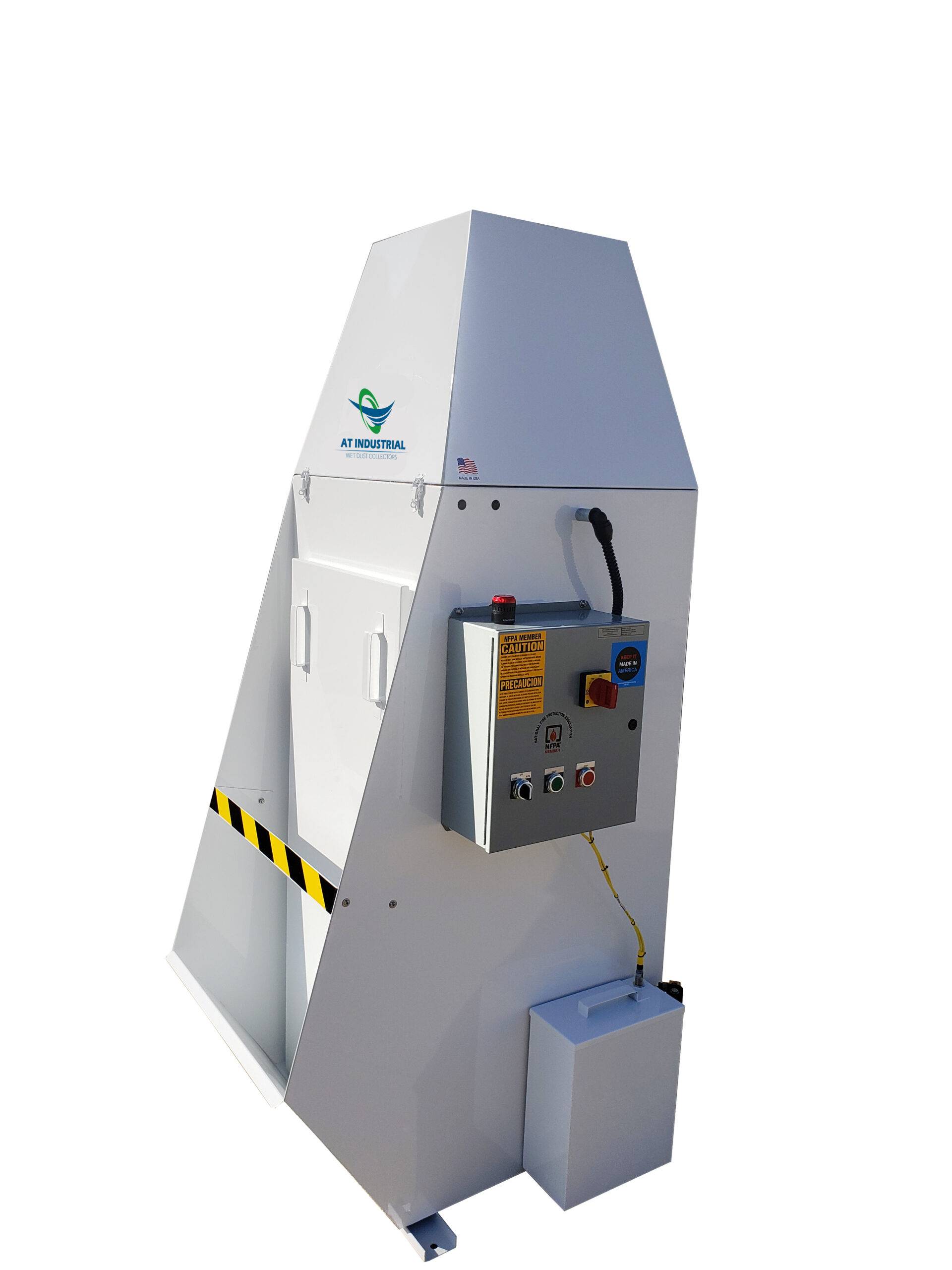

C5-1800 Wet Dust Collector
Model C5-1800 Specifications:
- Approximate dimensions: 26″W x 38″D x 81″H
- Est. Shipping Weight: 650lbs
- Sump Capacity: 42 gal.
- Motor: 5 HP
- CFM @ Inlet: 1800
- Inlet Dia.: 8″
Applications:
Machining, Sawing, Grinding, Deburring, Sanding
Standard Features:
| Component | Specification | Benefit |
|---|---|---|
| Housing | 304 Stainless Steel | Corrosion resistance and long service life |
| Motor | TEFC 230V–460V/60Hz/3ph | Enclosed protection in dusty and wet environments |
| Impeller | Precision-balanced stainless steel, direct coupled | Maximum CFM with minimum vibration |
| Maintenance Door | Front access | Easier servicing without moving the unit |
| Starter | Manual dial type | Simple, on-unit operation |
| Water Level Controller | Automatic | Maintains proper water level without operator input |
| Panels | Sound suppression | Reduced operating noise |
| Exterior | Powder coated | Durable, cleanable finish |
| Sludge Rake | Stainless steel | Simplifies sediment removal and cleaning |
Options:
- NEMA electrical package
- Starts collector when process machinery is turned on
- Monitors water level to ensure proper CFM production
- Shuts down processing equipment and wet collector when water level is too low or too high
- Extended sump, stainless steel cover and flange
- Moves inlet from vertical to horizontal position
- Eliminates 45° & 90° elbow off the back of the unit
- Allows straight duct to attach to the flange located on top of the sump cover
Request a Quote
Request a quote using the form below or give us a call at 909.593.8340. In-stock units are available!
